Diamond Blade For Gang Saw
Apart from granite a diamond blades are used as particular or single blade for proccesing natural stone blocks into slabs or for squaring natural stone blocks.
Whatever the color or the type of your marble or your natural stone, we will provide for you the best set of blades for precision and high quality cutting.
The life and production of the set, the cutting speed and lowest power cost, comes from our advanced experience in such field and our high technician engineers who know your stone well, and understand how to provide the right choice of diamond segments and the right pitch for your stone.
We start serving you before sale. We help you to choose the right diamond blades fo your material. Before buy, just test our services, just check how can we help you and how can we improve your business, how can we increase the quality of your products and how can we decrease your cost.

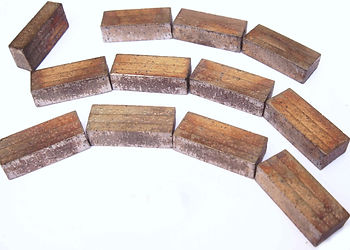

Diamond Segments
We provide two types of diamond segments for gang saw blades, one is conical segments in highest 10 mm, and the other type is boxed and straight with highest of 8 mm and 10 mm.
Data Sheet
- Conical Segments: 20 mm * 5.5/4.5 mm * 10 mm
- Boxed Segments: 20 mm * 5.5 mm * 10 mm
- Boxed Segments: 20 mm * 5.5 mm * 8 mm
Diamond segments are not totally effected on the material to be cut, and customer must provide the following information to choose the best segments for him:
- Gang saw brand name and model.
- Type of material to be cut.
- The length of the blade.
- Number of blades.
- the length of effective cutting size.
Steel Blades
L1 = total length of the blade
L2 = effective cutting size
L3 = cutting pitch L4 = length of segment
L5 = Blade wide E = blade thikness
S = highest of segments
B = flange wide C = flange thikness
A = angle of flange.
All blades lengths and thiknesses are available up to your machine ready to reuse after segment finishing and able to work in the hardest operating conditions.
Blades Diameter
180 mm * 2.5 mm * your machine length
180 mm * 3 mm * your machine length
180 mm * 3.5 mm * your machine length
Need more information ??
24 Hours per day - 7 Days per week Technical Support
We offer for our customers a constant technical support before, during and after installing the blades. Including customer support by choosing the right diamond segments for the stone to be cut, and supporting in the first stages of operating the set plus the after sale services in a periodic follow-up and solving any problems comes from operating mistakes and making the essential segments brazing if neccessary.
In our company, we have the specialist workshops and a high training technicans for doing the following diamond blades operations:
- Cut and shortening the steel blades to fet your machine frame.
- Cleaning the used steel blades and preparing for segments refill .
- All brazing operations in our workshops or customer locations.
We Install Your Set Of Blades
In Its Perfect Way
