Main characteristics
• Uniform external diameter along the entire length of the rope.
• Internal identification coding.
• Ropes stable and stabilized.
• Preforming.
Recommendations for improved performance
• Maximum traction to which the cutting ring is subjected must
not exceed 1/6 of the Minimun Breaking Force of the rope.
• Pay utmost attention to the ring cooling system during operations.
Tolerances
• Diameter tolerance:
0, -3% of the nominal diameter.

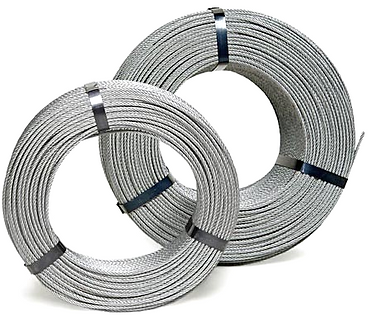

Special Calibrated Ropes for marble and stone cutting
TM133 BRASS PLATED
TM133 BRASS PLATED Crystal Flex
TM61 DRY CUT
Crystal Flex
TM61
CLASSIC
TM61
CLASSIC
61 Wires
Traditional cutting in quarry spring wire
Galvanised steel
Machineries: single wire saw for quarry - Materials: marble, granite and other stones
Rope Ø Wire Ø Meter Weight Min Breaking Force
daN kgf
4.9 mm 0.52 mm 0.101 kgm 1800 1835
TM61 DRY CUT
Crystal Flex
4.9 mm 0.52 mm 0.089 kgm 1800 1835
Rope Ø Wire Ø Meter Weight Min Breaking Force
daN kgf
Dry cut with spring wire diamond saws
Galvanised steel
Machineries: single wire saw for quarry - Materials: marble, granite and other stones
TECI, Trefolo Rosso, Redaelli and Crystal Flex, are a branded names and regestired. afroarab are not the owner or the producer but we only reseller for the above mentioned.
Metal rope with fibres of liquid-crystal polymer
European Patent Application EP2067893
4.9 mm 0.32 mm 0.079 kgm 2160 2200
Rope Ø Wire Ø Meter Weight Min Breaking Force
daN kgf
Application: rubber coating - Machineries: single wire saw machine (quarry or stationary) - Materials: granite, concrete, stones.
Note: Ropes with high breaking force
Wire ropes for special applications, rubber coating
Brass coated ropes
TM133 BRASS PLATED
133 Wires
Wire ropes for special applications, rubber coating
Brass coated ropes
Application: rubber coating - Machineries: single wire saw machine (quarry or stationary) - Materials: granite, concrete, stones.
Note: Ropes with high breaking force
Rope Ø Wire Ø Meter Weight Min Breaking Force
daN kgf
4.9 mm 0.52 mm 0.089 kgm 1800 1835
We Do It Better
Are you looking for a high quality wire saw assembly ? We do it better. In our workshops we have the high training workers and engineers that can do care with your wire. Weather you want to assemble new beads or want to reassemble a wire saw. Just contact us and keep peace of mind.
Want to assemble your diamond wire saw ? Contact us or check our service.
TM133 BRASS PLATED Crystal Flex
133 Wires
Comparison among technical features of different TM calibrated ropes for diamond saws
Load Capacity
Handling
Wear Resistance
Flexibility
Fleet Angle
Fatigue
Shock Resistance
Rotation Stability
Load Capacity
Handling
Fatigue
Shock Resistance
Rotation Stability
Fleet Angle
Flexibility
Wear Resistance
Wear Resistance
Flexibility
Fleet Angle
Rotation Stability
Shock Resistance
Fatigue
Handling
Load Capacity
Flexibility
Handling
Fatigue
Shock Resistance
Rotation Stability
Fleet Angle
Wear Resistance
Load Capacity
